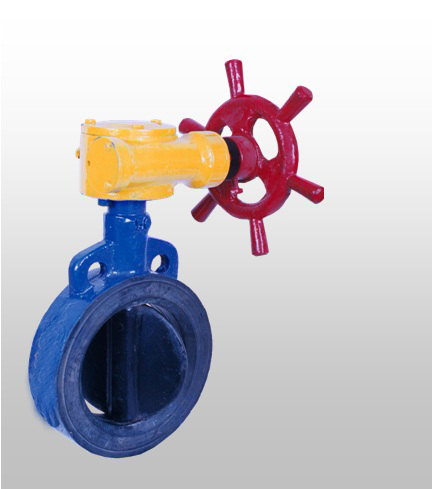

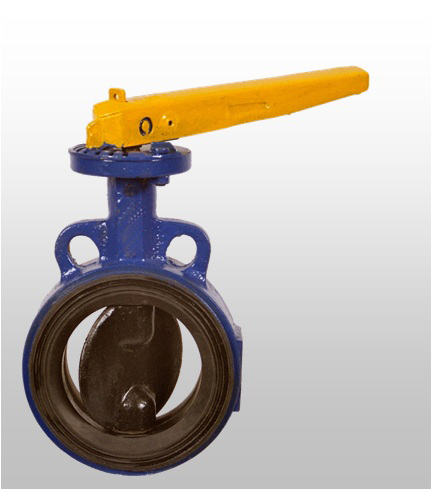

Wafer Type Butterfly Valve
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Iron, SG Iron, Ductile Iron, Cast Steel (ASTM A 216 WCB / LCB), Stainless Steels ASTM A 351 CF8 / CF8M |
| TRIM | : | S.S. 410 - S.S. 304 / 316 |
| DESIGN | : | Center Disk Wafer Type |
| DISC | : | S.G. IRON, S.S. 304(CF8) S.S. 316(CF8M) & ASTM A 216 WCB, Cast Iron, Nylon Coated / Cast Iron Epoxy Coated |
| SEAT | : | Molded Nitrile (Buna) Rubber / E.P.D.M. Rubber / Neoprene Rubber / Viton Rubber / Replaceable PTFE Teflon |
| END CONNECTION | : | Wafer Type Plain Ends / Flanged |
| COMPILES TO | : | BS 5155 / API 609 / MSSSB67 / AWWA C504 |
| TESTING STD | : | BS 6755 PART - 1 |
| SIZE | : | 40 mm to 300mm Hand Lever Only, 100mm to 1000mm Hand Wheel Gear Operated |
| Pressure Rating | : | PN-10 / 16 |
| OPERFATION | : | lever operated / hand wheel gear operated / Pneumatic Actuator Operator |
