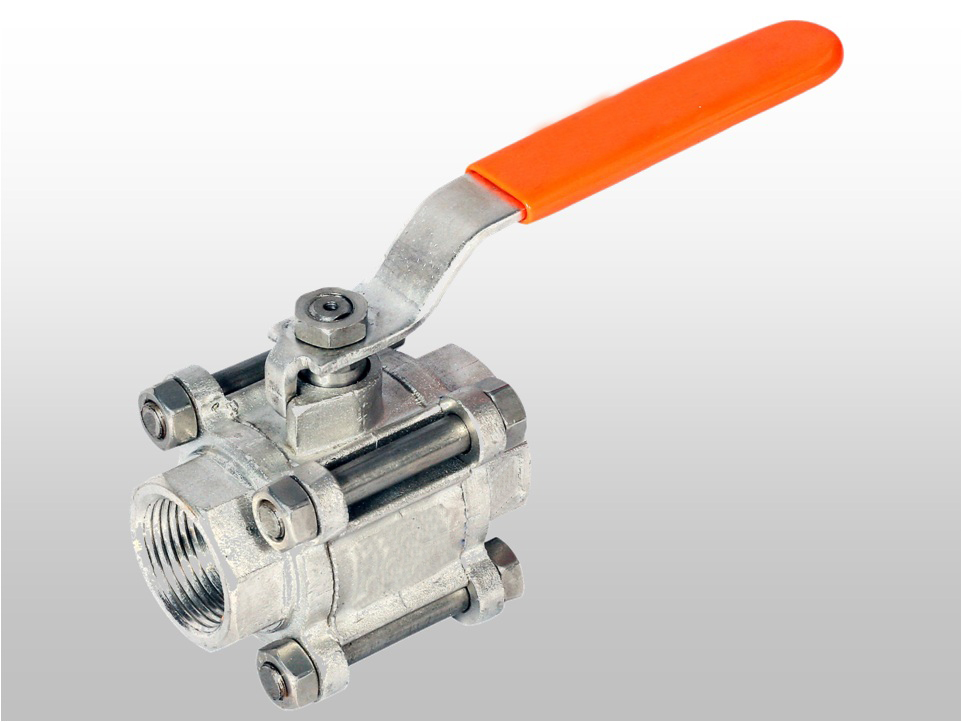

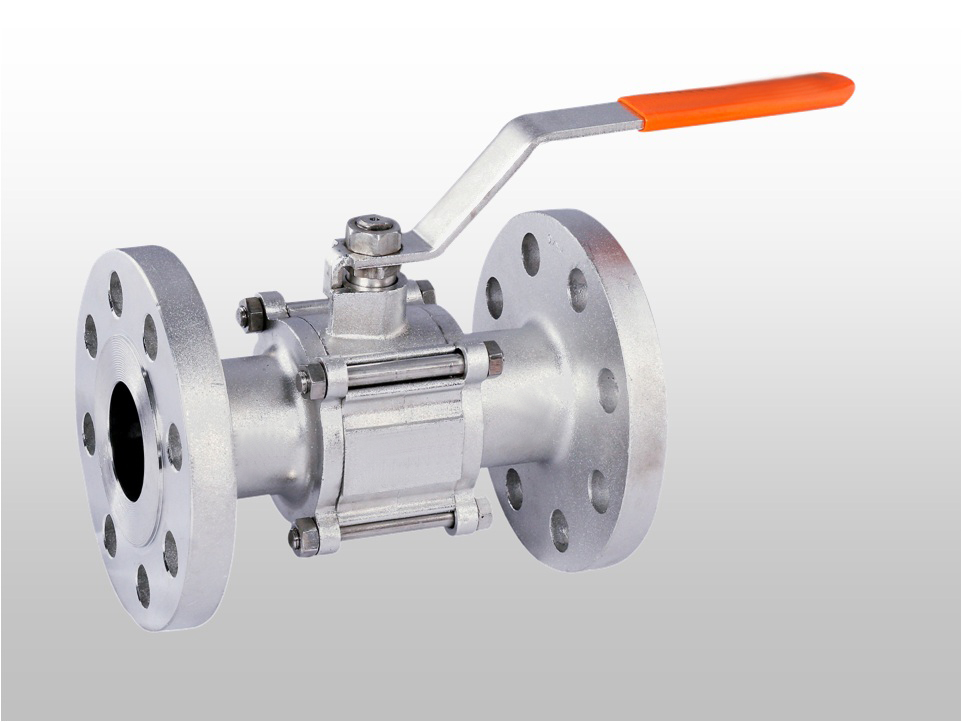

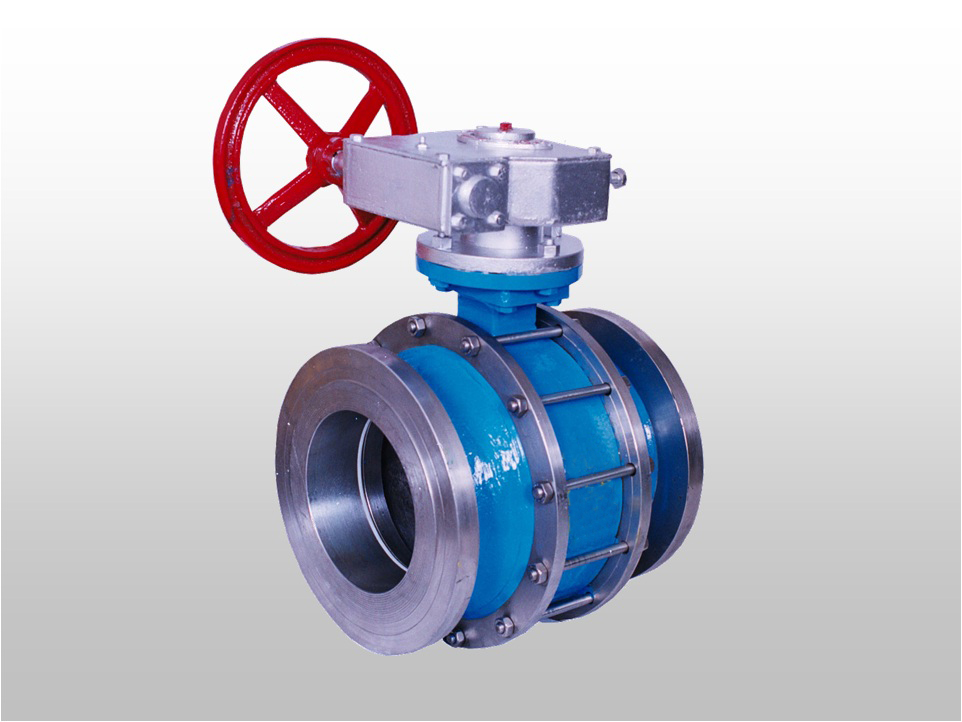

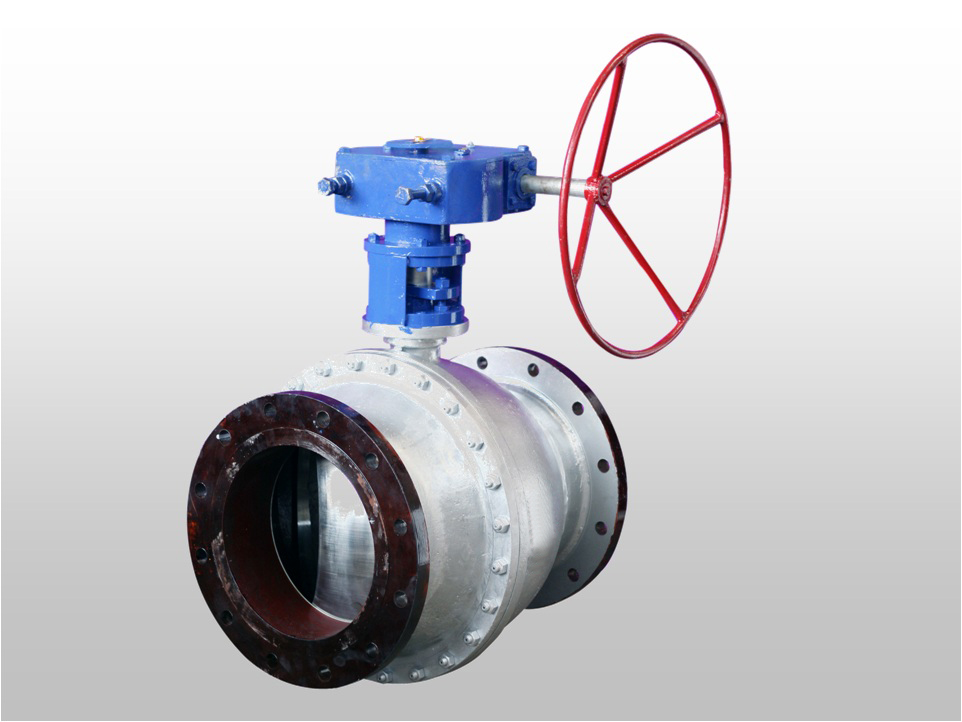

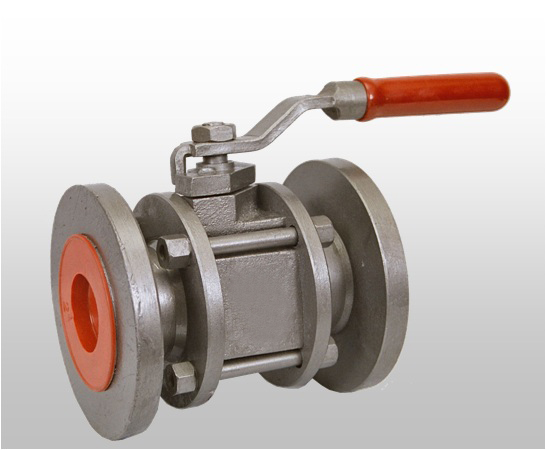

3 piece design Ball Valves
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast iron,Cast Steel (ASTM A 216 WCB / LCB), NACE MRO 1-75, Stainless Steels, (ASTM A 351 CF8,(304), CF3(304L), CF8M(316)), CF3M(316L),CF8C(321), ALLOY 20(CN/7M) |
| BALL | : | S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20. Floating Ball and Tunion Mounted Ball |
| TRIM | : | S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20 |
| SEAT | : | PTFE (100%) / Glass / Carbon Filled / Metal to Metal Seated |
| TYPE | : | Three Piece Design |
| PORT | : | Regular / Full Port |
| COMPILES TO | : | BS-5351,API-6D |
| TESTING STD | : | BS 5146 / BS6765 |
| DESIGN | : | Floating Ball and Tunion Mounted Ball Design Fire Safe Design / Anti Static Design |
| END CONNECTION | : | Screwed / Socket Weld / Butt Weld / Flanged ends |
| PRESSURE RATING | : | ASA 150 / 300 / 400 / 600 / 800 / 900 class |
| SIZE | : | 6mm to 400mm |
| TEMP | : | 235° C. |
| OPERATION | : | Manual, Hand Wheel gear Operated Pneumatic Actuator, Electic Actuator |
