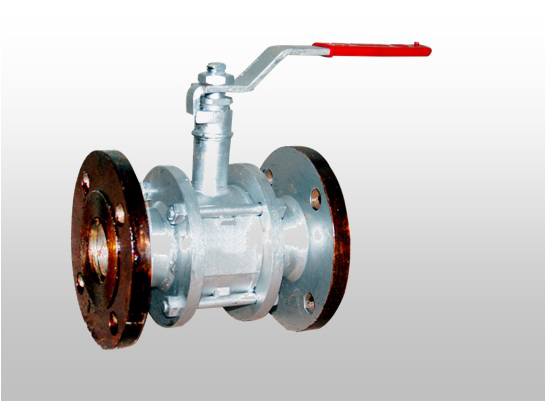

Extended spindle Ball Valves
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Steels (ASTM A 216 WCB / LCB), CF8M (316), CF3M (316L) |
| BALL | : | S.S. 304/316/410, Floating Ball |
| EXTENDED STEM | : | 75mm Long / 100mm Long / 150mm long EXTENDED SPINDLE |
| SEAT | : | PTFE (100%) / GLASS / Carbon Filled |
| TYPE | : | Two piece , Three Piece Design |
| PORT | : | Full Port |
| END CONNECTION | : | Screwed / Socket Weld / Butt Weld / Flanged |
| COMPLES TO | : | BS - 5351, API - 6D |
| TESTING STD | : | BS 5146 / BS 6765 |
| PRESSURE RATING | : | ASA 150 / 300 Class |
| SIZE | : | 15mm to 150mm Lever Operated, Hand Wheel Gear Operated, Pneumatic, Electric actuator |
