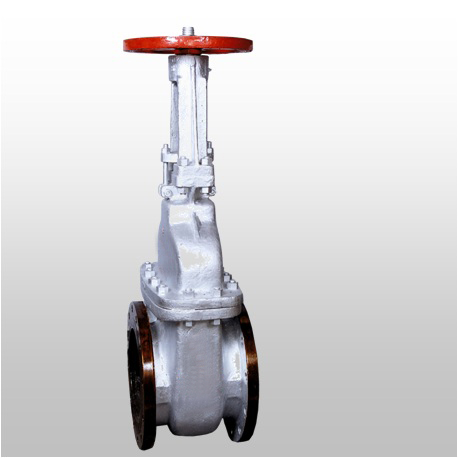

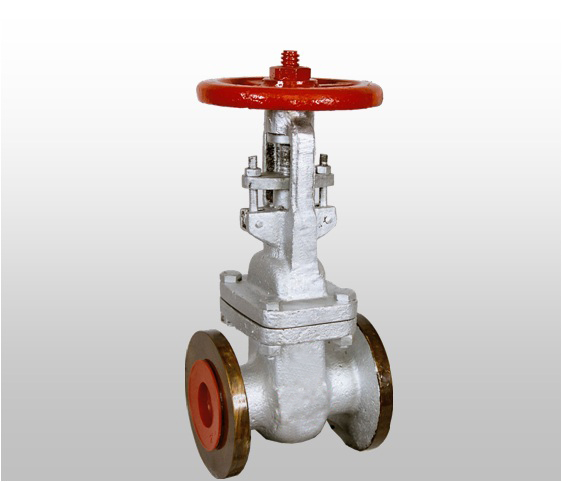

ASA 300 # Gate Valve
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Steel (ASTM A 216 WCB / LCB), NACE MR 01-75, Forgrd Carbon Steel A 105, Alloy Steel F 22, Forged Stainless Steel A 182-304/304L/316/316L, Stainless Steel ASTM A 351 CF8(304), CF3(304 L), CF8M(316), CF3M (318L) |
| TRIM | : | AISI SS 410 (13% Cr.) / S.S. 304 / S.S. 316 |
| TYPE | : | O.S. & Y Type , Rising Stem |
| PLUG & SEAT | : | AISI SS 410 13% CR/ Stellited / Hard Face / Stainless Steel SS 304 / 316 , Stellited & Hard Faced |
| END CONNECTION | : | socket weld / But Weld / Flenged |
| COMPILES TO | : | API 600 / 602 BS - 1868 and BS - 5352 |
| TESTING STD | : | BS 5146 / BS 6755 |
| PRESSURE RATING | : | ASA 300 Class |
| SIZE | : | 15mm to 600mm |
| TEMPARATURE | : | 385° C to 500 ° C |
| HYDRAULIC SEAT PRESSURE | : | 54 kg/Cm^2 |
| OPARATION | : | manual / pnuametic / cylinder operated / electric actuator |
