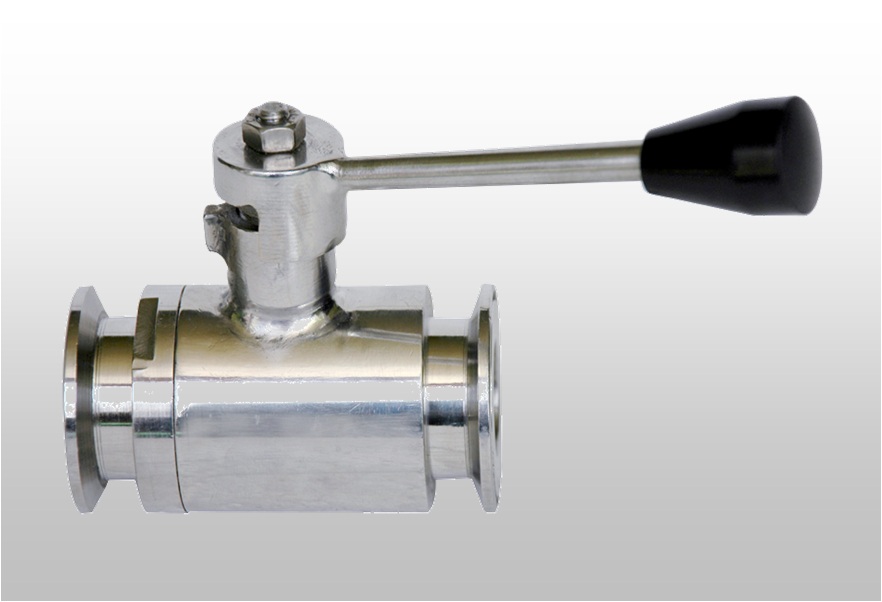

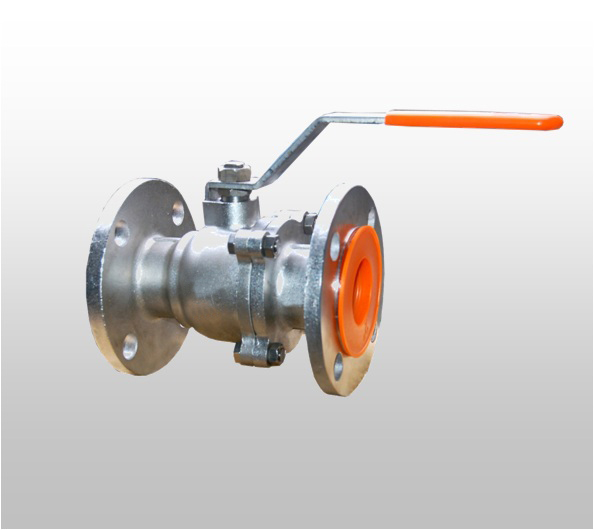

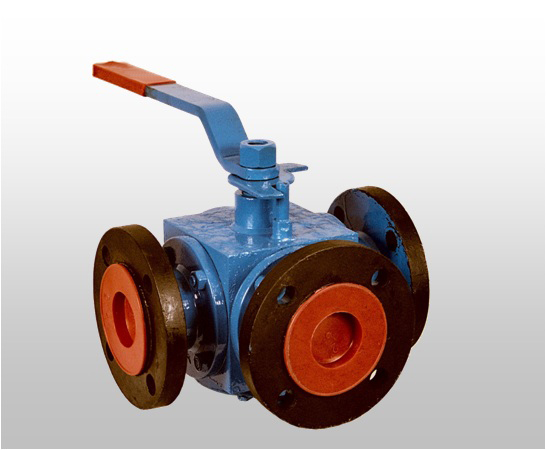

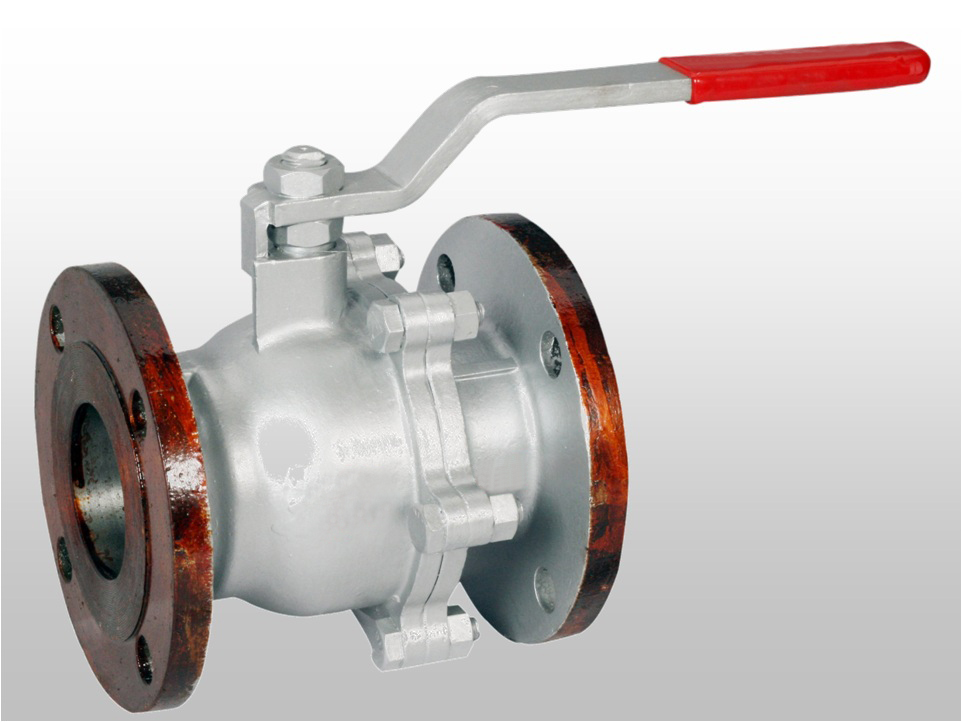

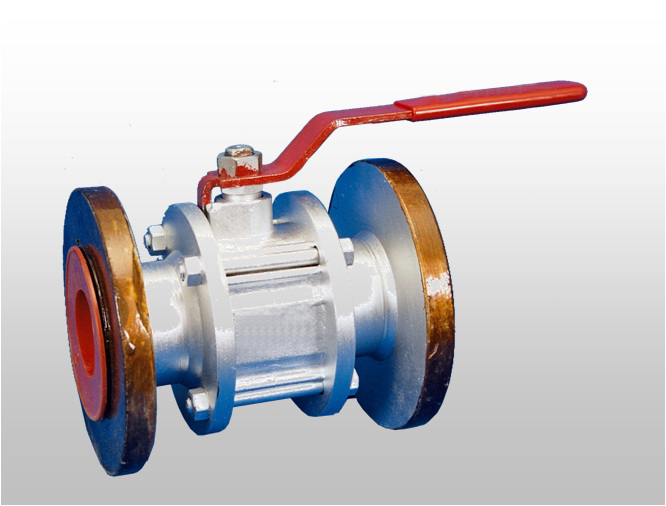

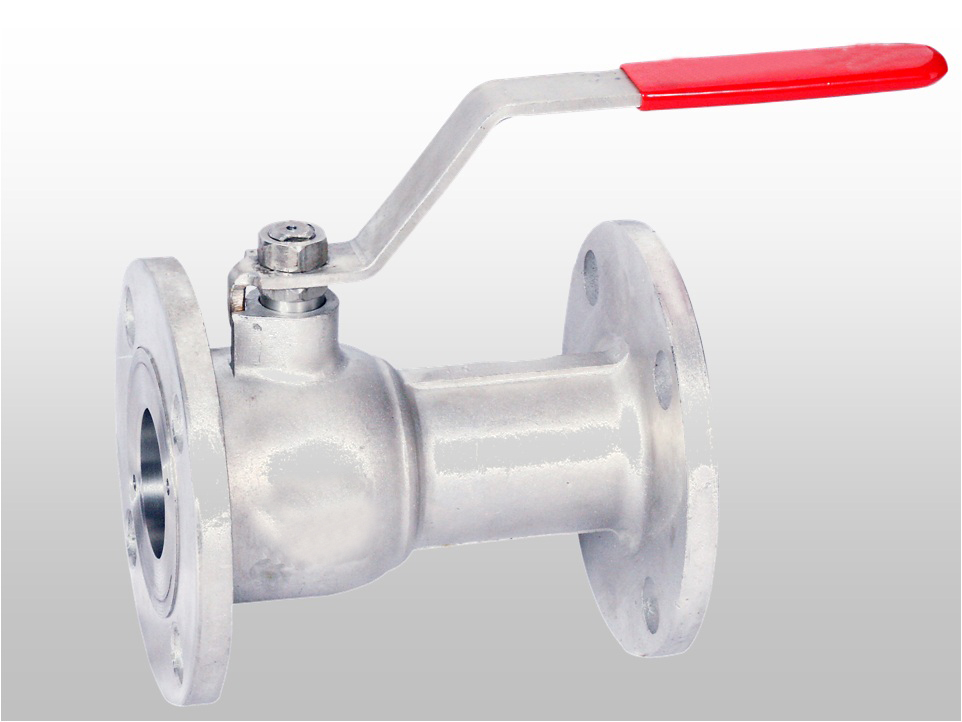

Ball Valves
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Steel (ASTM A 216 WCB / LCB), NACE MRO 1-75, Stainless Steels, (ASTM A 351 CF8,(304), CF3(304L), CF8M(316)), CF3M(316L),CF8C(321), ALLOY 20(CN/7M), Forged Carbon Steel ASTM A105/Forged Stainless Steel ASTM A182 304/304L 316/316L, Cast iron |
| BALL | : | S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20. Floating Ball and Tunion Mounted Ball |
| TRIM | : | S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20 |
| SEAT | : | PTFE (100%) / Glass / Carbon Filled / Metal to Metal Seated |
| TYPE | : | One piece / Two Piece / Three Piece Design |
| PORT | : | Regular / Full Port |
| COMPILES TO | : | BS-5351,API-6D |
| TESTING STD | : | BS 5146 / BS6765 |
| DESIGN | : | Floating Ball and Tunion Mounted Ball Design Fire Safe Design / Anti Static Design |
| END CONNECTION | : | Screwed / Socket Weld / Butt Weed / Flanged ends |
| PRESSURE RATING | : | ASA 150 / 300 / 600 / 800 / 900 class |
| SIZE | : | 6mm to 400mm |
| TEMP | : | 235° C. |

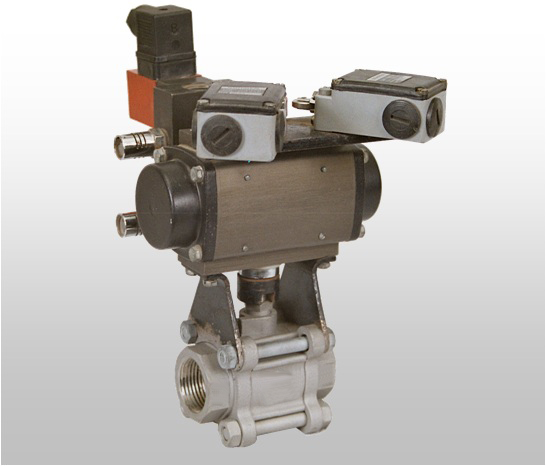

| OPERATION | : | lever opereted,Hand wheel gear operated, Pneumatic Actuator opereted, Electic Actuator opereted |
