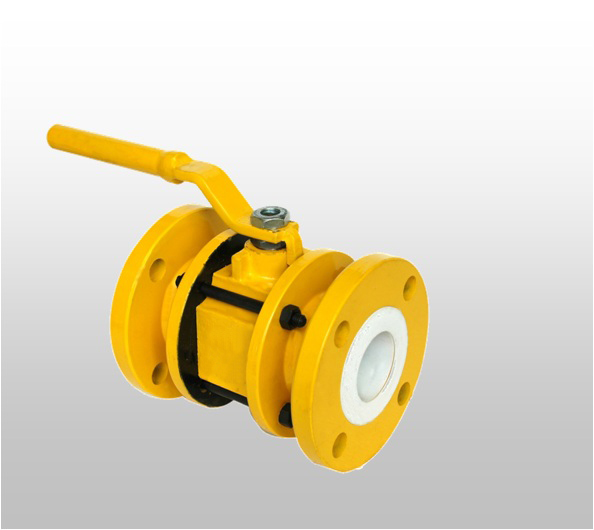

Teflon Lined/Sleeve Ball Valves
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Steel (ASTM A 216 WCB), Stainless Steel (ASTM A 351 CF8 (304), CF3 (304L), CF8M (316), CF3M (316L)), Cast Iron / SG Iron |
| LINED | : | MOLDED by PFA/TFA LINED |
| SLEEVE | : | 100% PTFE Sleeve |
| SEAT | : | PTFE (100%) |
| TYPE | : | Three Piece / Two Piece Design |
| PORT | : | Full Port |
| BALL & STEAM | : | S.S. 316 PFA / TFA Coating/ Lined |
| COMPILES TO | : | BS - 5351, API - 6D |
| TESTING STD | : | BS 5146 / BS 6765 |
| TEMPRATURE | : | 180° C |
| PRESSURE RATING | : | ASA 150/300 Class |
| SIZE | : | 15mm to 150mm |
| END CONNECTION | : | Flanged & ASA 150 Class / 300 Class |
| OPERATION | : | Lever Operated, Hand wheel gear operated, Pnumatic actuator Operated |
