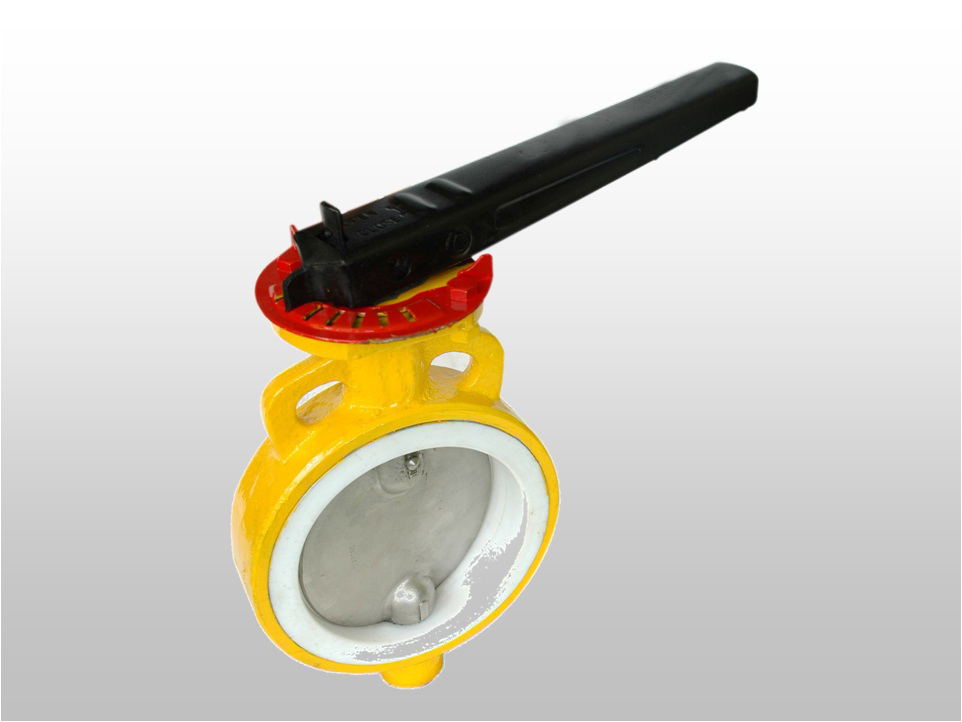

Teflon Sleeve Lined Butterfly Valves
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | S.G. Iron, Cast steel ASTM 216 WCB, Stainless Steel ASTM A351, CF8(304),CF8M(316) |
| DESIGN | : | Center Disc / Offset Disc Design |
| TRIM | : | S.S. 410 - S.S. 304 / 316 |
| TYPE | : | Wafer Type Plain End |
| DISC | : | S.G. IRON with TFA/PFA coated, S.S. 304(CF8) S.S. 316(CF8M) & ASTM A 216 WCB |
| SEAT | : | Replaceable PTFE Teflon Sleeve |
| END CONNECTION | : | Wafer Type Plain Ends / Flanged |
| COMPILES TO | : | BS 5155 / API 609 / MSSSB67 / AWWA C504 |
| TESTING STD | : | BS 6755 PART - 1 Pressure Rating : PN -10 / 16 |
| SIZE | : | 25mm to 300mm Hand Lever Only, 200mm to 400mm Hand Wheel gear operated |
| OPERATION | : | lever operated / hand wheel gear operated / Pneumatic Actuator Operator |
