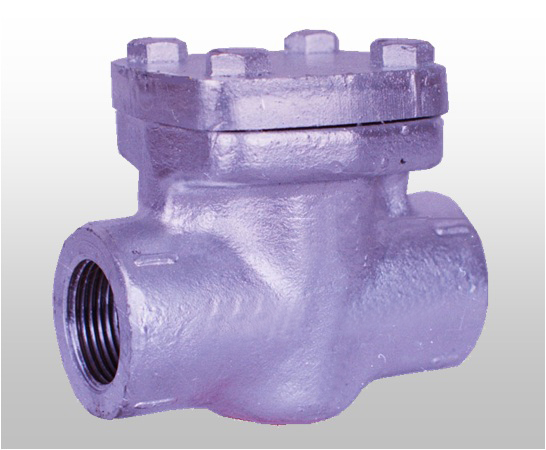

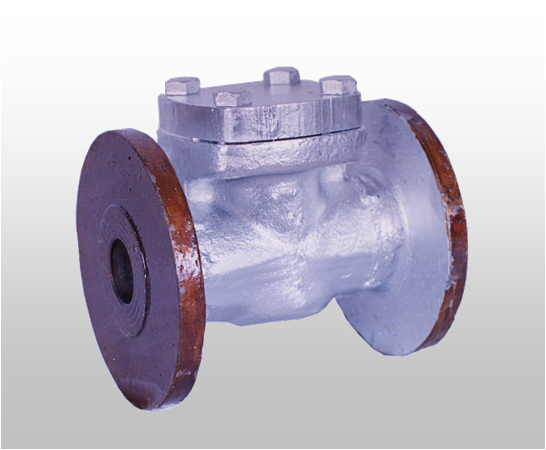

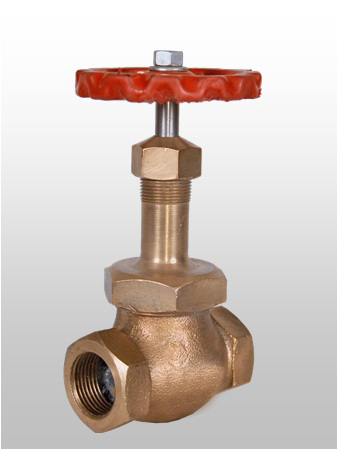

Forged Steel Valves
Globe / Gate / Check
(IBR / NON IBR)
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Forgrd Carbon Steel A 105, Alloy Steel F 22, Forged Stainless Steel A 182-304/304L/316/316L |
| TRIM | : | AISI SS 410 (13% Cr.) / S.S. 304 / S.S. 316 |
| TYPE | : | O.S. & Y Type , Rising Stem |
| PLUG & SEAT | : | AISI SS 410 13% CR/ Stellited / Hard Face / Stainless Steel SS 304 / 316 , Stellited & Hard Faced |
| END CONNECTION | : | Scewed / Socket / But Weld / Flenged Ends |
| COMPILES TO | : | API 600 / 602 BS - 1868 and BS - 5352 |
| TESTING STD | : | BS 5146 / BS 6755 |
| PRESSURE RATING | : | ASA 800 / 900 / 2500 Class |
| SIZE | : | 15mm to 50mm |
| TEMPARATURE | : | 385° C to 500 ° C |
| HYDRAULIC SEAT PRESSURE | : | 154 kg/Cm^2 / 277 kg/Cm^2 |
| OPARATION | : | manual |
