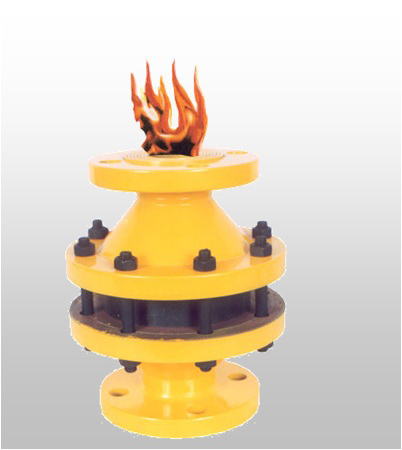

Flame Arrestor
Click image to zoom
Click image to zoom
| ABOUT | : | Flame Arrastor for use in Chemical, Petrochemical & allied Industries. These Find Application in Chemical, Petrochemical & allied Industries requiring stroring of hazadous chemicals.They are mounted on top of strong of hazadous prevent passing of flame into the tank or in the pipeline thereby considerably reducing the fire hazard, its special crimped ribbin design prevents flame from entering into the process. |
| CONSTRUCTION OF MATERIALS | : | Cast Steel ASTM A 216 WCB, Stainless Steel CF8 (304) / CF8M (316), Alluminium Alloy LM6 & Cast Iron. |
| TRIM | : | Crimped Ribbon Bank Stainless Steel 304 / 316 |

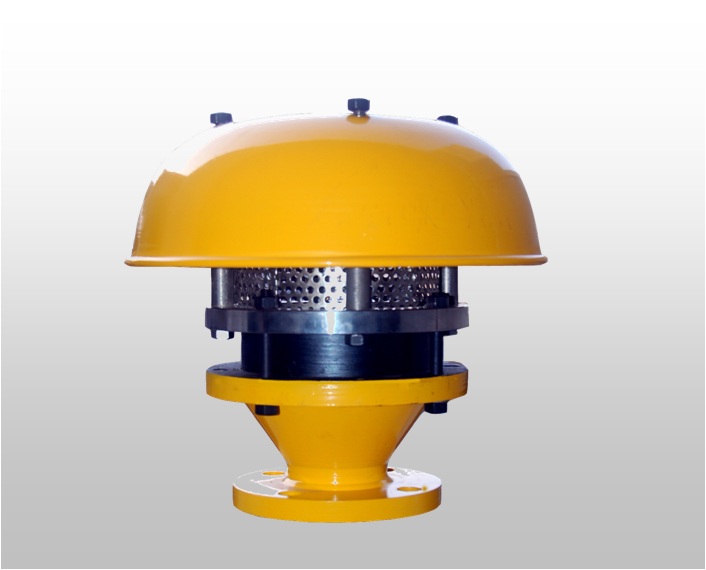

| TYPE | : | End of line / inline / DOM (HOOD) type end of the line |
| COMPLINES TO | : | API 2000 |
| END CONNECTION | : | ASA 150 Class / 300 Class, Flanged / Screwed End |
| SIZE | : | 25mm to 600mm |
| USE | : | In any Process of plant which uses a flammable gas or vapor that could conceivably ignite, a flame, Flame Arrestor must be installed |
