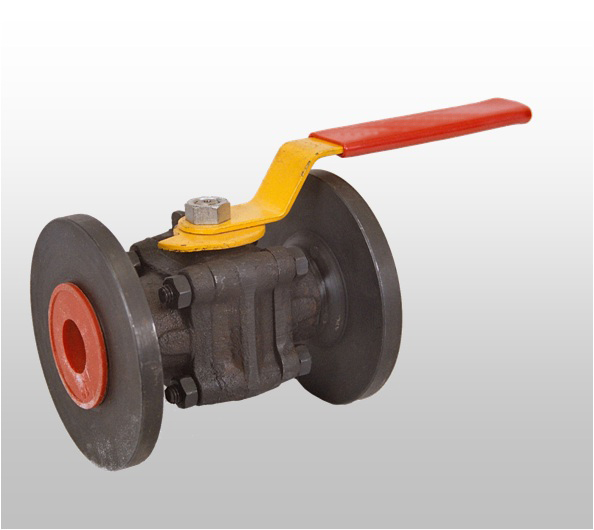

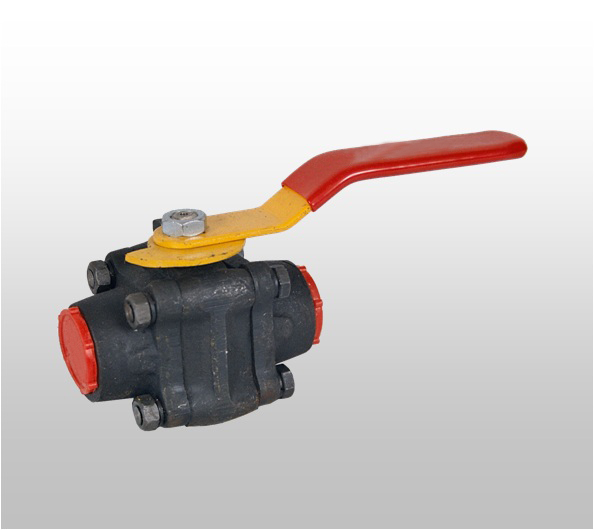

Forged Steel Ball Valves ASA 800 Class
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Forged carbon steel, ASTM A105 Grade B / Forged Stainless Steel ASTM 182 F304 / 304L / 316 / 316L |
| BALL | : | S.S. 304 / 304L / 316 / 316L. Floating Balll |
| TRIM | : | S.S. 304 / 304L / 316 / 316L |
| SEAT | : | PTFE (100%) / Glass / Carbon Filled |
| TYPE | : | Three Piece Design |
| PORT | : | Regular / Full Port |
| COMPILES TO | : | BS-5351,API-6D |
| TESTING STD | : | BS 5146 / BS6765 |
| DESIGN | : | Floating Ball and Fire Safe Design / Anti Static Design |
| END CONNECTION | : | Screwed / Socket Weld / Butt Weld / Flanged ends |
| PRESSURE RATING | : | ASA 800 class |
| SIZE | : | 6mm to 65mm |
| TEMP | : | 235° C. |
| OPERATION | : | Manual, Pneumatic Actuator |
