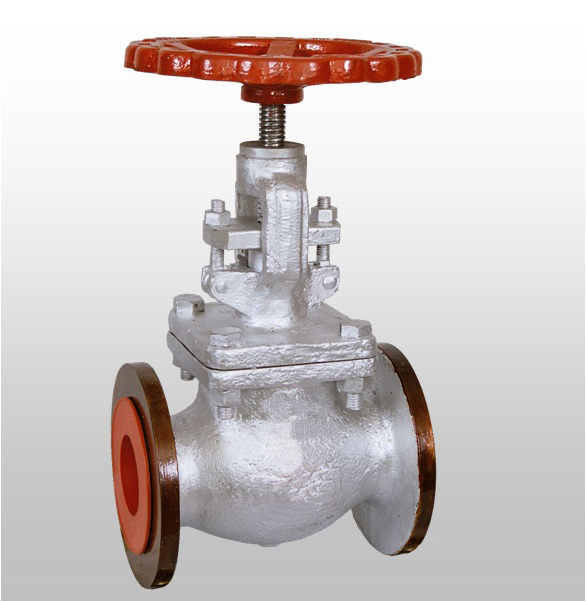

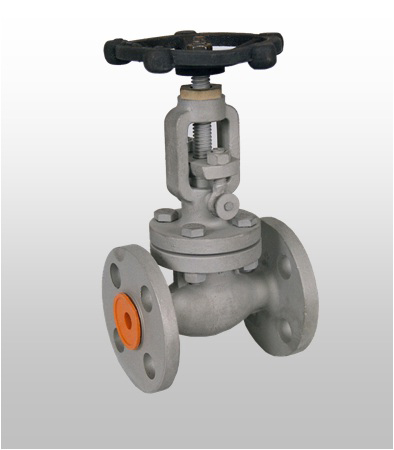

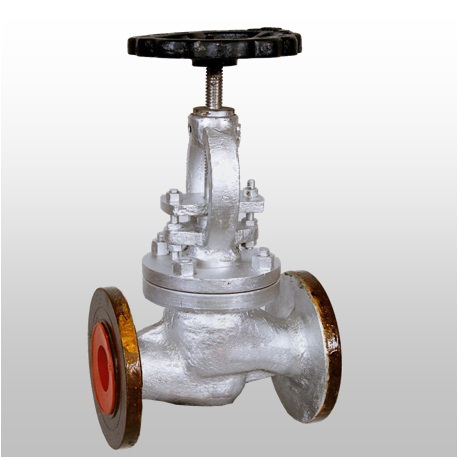

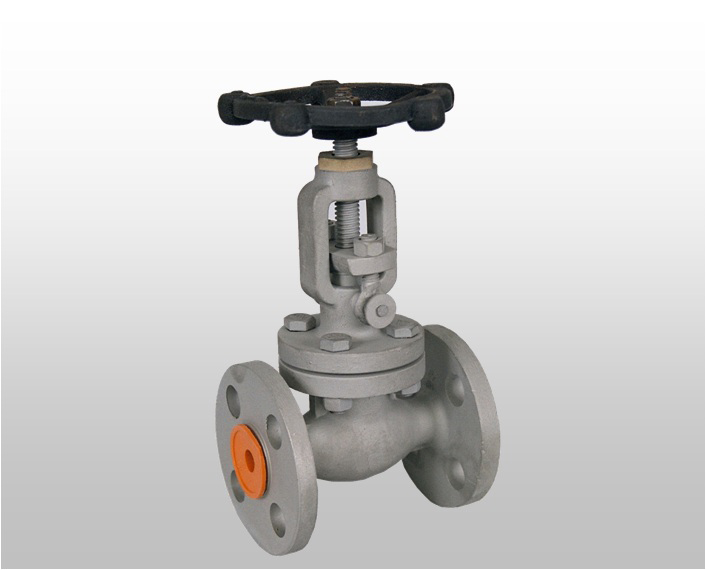

Globe Valves
(IBR / NON IBR)
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
Click image to zoom
| CONSTRUCTION OF MATERIALS | : | Cast Steel (ASTM A 216 WCB / LCB), NACE MR 01-75, Forged Carbon Steel A 105, Alloy Steel F 22, Forged Stainless Steel A 182-304/304L/316/316L, Stainless Steel ASTM A 351 CF8(304), CF3(304 L), CF8M(316), CF3M (318L) |
| TRIM | : | AISI SS 410 (13% Cr.) / S.S. 304 / S.S. 316 |
| TYPE | : | O.S. & Y Type , Rising Stem |
| PLUG & SEAT | : | AISI SS 410 13% CR/ Stellited / Hard Face / Stainless Steel SS 304 / 316 , Stellited & Hard Faced |

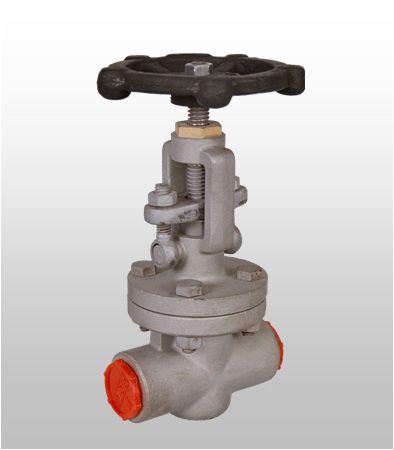

| END CONNECTION | : | Screwed / Socket Weld / Butt Weld / Flanged |
| COMPILES TO | : | API 600 / 602 BS - 1868 and BS - 5352 |
| TESTING STD | : | BS 5146 / BS 6755 |
| PRESSURE RATING | : | ASA 150,300,600,800,900 Class |
| size | : | 15mm to 600mm |

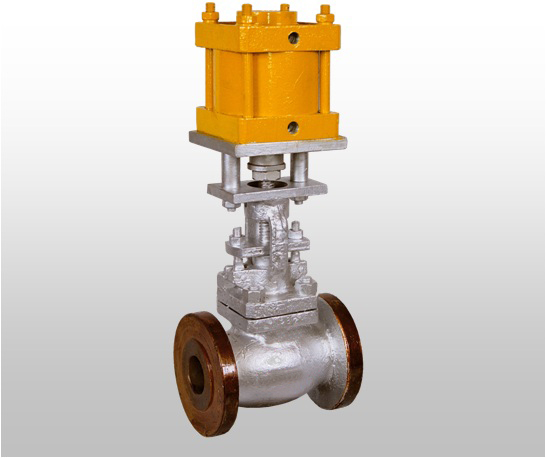

| OPERATION | : | manual / pnuametic / cylinder operated / electric actuator |
